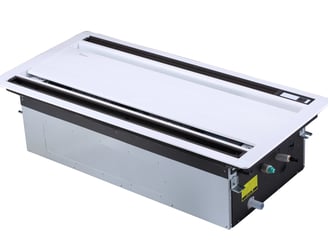

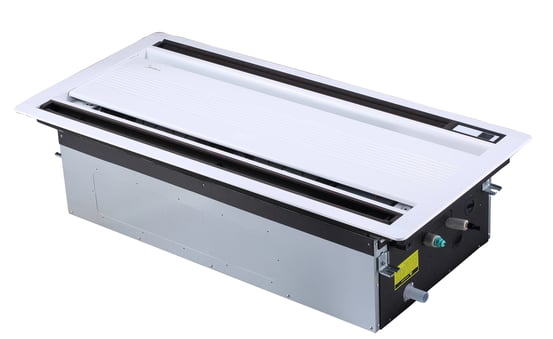

2 Way Cassette

• Power Supply (Ph-V-Hz) : 220-240/1/50/60

• Cooling Capacity (kW) : 2.2~7.1

• Cooling Capacity (kBtu/h) : 7.5~24.2

• Cooling Power Input (W) : 35.0~98.0

• Heating Capacity (kW) : 2.6~8.0

• Heating Capacity (kBtu/h) : 8.9~27.3

• Heating Power Input (W) : 35.0~98.0

• Air flow (cubic meter/h) : (654/612/571/530/488/449/410)~(1200/1115/1068/1000/921/808/770)

• Sound pressure level (dB(A)) : (33/31/30/29/27/25/24)~(44/42/41/40/38/36/34)

• Main Body, Net dimensions (W×H×D)(mm) : 1172×299×591

• Packed dimensions (W×H×D)(mm) : 1355×400×675

• Net/Gross weight(kg) : (29.7/36.3)~(31.6/38.2)

• Panel, Net dimensions (W×H×D)(mm) : 1430×53×680

• Packed dimensions (W×H×D)(mm) : 1525×130×765

• Net/Gross weight(kg) : 11/15
