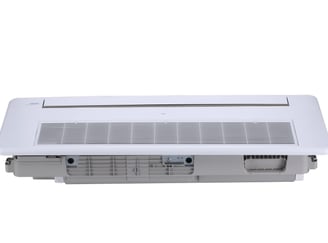

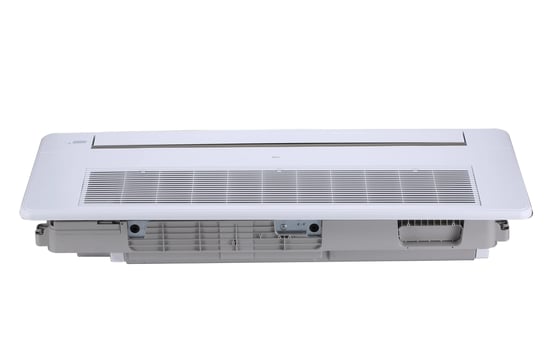

One Way Cassette

• Power Supply (Ph-V-Hz) : 220-240/1/50/60

• Cooling Capacity (kW) : 1.8~7.1

• Cooling Capacity (kBtu/h) : 6.1~24.2

• Cooling Power Input (W) : 25.0~60.0

• Heating Capacity (kW) : 2.2~8.0

• Heating Capacity (kBtu/h) : 7.5~27.3

• Heating Power Input (W) : 25.0~60.0

• Air flow (cubic meter/h) : (380/355/330/300/286/263/240)~(933/873/815/749/ 689/637/592)

• Sound pressure level (dB(A)) : (30/28/27/26/25/24/22)~(43/41/40/39/37/ 36/35)

• Main Body, Net dimensions (W×H×D)(mm) : (1054×153×428)~(1275×189×452)

• Packed dimensions (W×H×D)(mm), (1155×245×490)~(1370×295×505)

• Net/Gross weight(kg) : (11.5/14.5) ~(16.9/21.4)

• Panel, Net dimensions (W×H×D)(mm) : (1180×25×465)~(1350×25×505)

• Packed dimensions (W×H×D)(mm) : (1232×107×517)~(1410×95×560)

• Net/Gross weight(kg) : (3.5/4.7)~(4/5.6)
