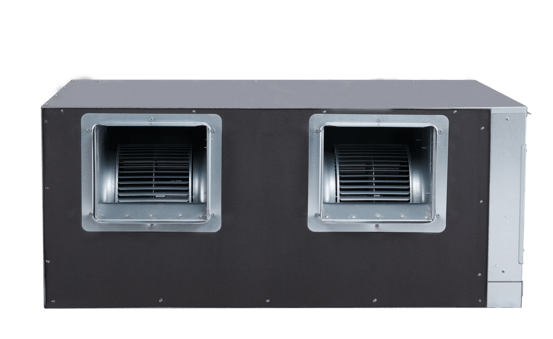

HSP Duct

• Power Supply (Ph-V-Hz) : 220-240/1/50/60

• Cooling Capacity (kW) : 5.6~56.0

• Cooling Capacity (kBtu/h) : 19.1~191.1

• Cooling Power Input (W) : 159.0~2030.0

• Heating Capacity (kW) : 6.3~63

• Heating Capacity (kBtu/h) : 21.5~215.0

• Heating Power Input (W) : 159.0~2030.0

• Air flow (cubic meter/h) : (1360/1281/1201/1122/1043/963/884)~ (4700/4387/4073/3760/3447/3133/2820)

• External static pressure (Pa) : 80(0-250)~300(0-400)

• Sound pressure level (dB(A)) : (39/38/36/35/33/32/30)~(59/58/56/54/53/51/49)

• Net dimensions (W×H×D)(mm) : (1050×299×750)~(1850×580×900)

• Packed dimensions (W×H×D)(mm) : (1215×359×890)~(2080×730×1060)

• Net/Gross weight(kg) : (35/38.5)~(170/208)
