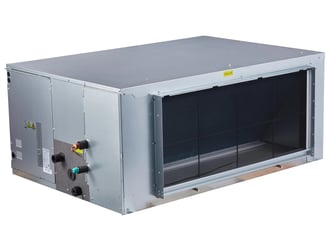

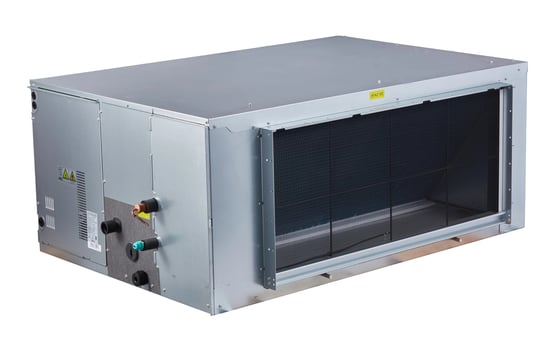

Fresh Air Processing Unit

• Power Supply : 220-240/1/50/60

• Cooling Capacity (kW) : 20~56

• Cooling Capacity (kBtu/h) : 68.3~191.1

• Cooling Power Input (W) : 425.0~1300.0

• Heating Capacity (kW) : 12.0~39.0

• Heating Capacity (kBtu/h) : 41.0~133.1

• Heating Power Input (W) : 425.0~1300.0

• Air flow (cubic meter/h) : (2500/2417/2333/2250/2167/2083/2000)~(6200/5833/5467/5100/4733/4367/4000)

• External static pressure (Pa) : 220(0-400)~300(0-400)

• Sound pressure level (dB(A)) : (47/46/46/45/44/43/42)~(56/55/55/54/53/52/51)

• Net dimensions (W×H×D)(mm) : (1300×550×900)~(1850×550×900)

• Packed dimensions (W×H×D)(mm) : (1530×730×1060)~(2080×730×1060)

• Net/Gross weight(kg) : (117/142)~(164/201)
