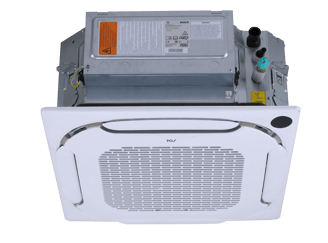

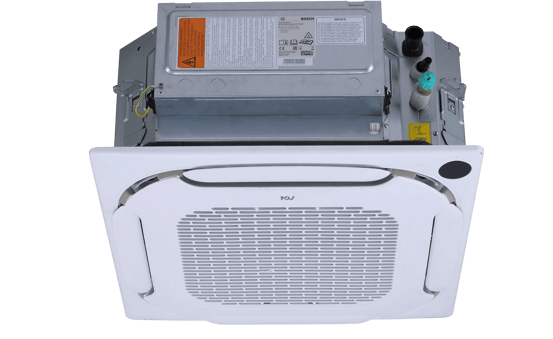

4 Way Cassette

• Compact Four-way Cassette

• Power Supply (Ph-V-Hz) : 220-240/1/50/60

• Cooling Capacity (kW) : 1.5~6.3

• Cooling Capacity (kBtu/h) : 5.1~21.5

• Cooling Power Input (W) : 14.0~50.0

• Heating Capacity (kW) : 1.8~7.1

• Heating Capacity (kBtu/h) : 6.1~24.2

• Heating Power Input (W) : 14.0~50.0

• Air flow (cubic meter/h) : (450/425/400/370/345/320/295)~(905/855/805/755/705/655/605)

• Sound pressure level (dB(A)) : (29/28/27/27/26/26/25)~(43/42/40/38/36/35/33.5)

• Main Body, Net dimensions (W×H×D)(mm) : 575×235×638

• Packed dimensions (W×H×D)(mm) : 690×285×690

• Net/Gross weight(kg) : (13.0/15.5)~(15.0/17.5)

• Panel, Net dimensions (W×H×D)(mm) : 620×65×620

• Packed dimensions (W×H×D)(mm) : 680×80×665

• Net/Gross weight(kg) : 2.3/3.0
