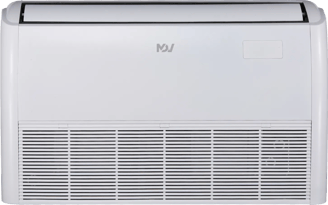

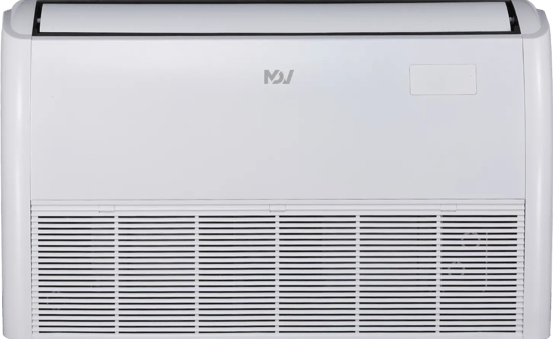

Ceiling & Flooring

• Power Supply (Ph-V-Hz) : 220-240/1/50/60

• Cooling Capacity (kW) : 3.6~14.0

• Cooling Capacity (kBtu/h) : 12.3~47.8

• Cooling Power Input (W) : 16.0~140.0

• Heating Capacity (kW) : 4.0~16.0

• Heating Capacity (kBtu/h) : 13.7~54.6

• Heating Power Input (W) : 16.0~140.0

• Air flow (cubic meter/h) : (564/539/514/492 /467/445/424)~(2206/2070/1937/1810/1677/1516 /1402)

• Sound pressure level (dB(A)) : (32/30/29/28/27/26/25 )~(51.5/50/48/46/44/42/40)

• Net dimensions (W×H×D)(mm) : (1069×674×234)~(1649×674×234)

• Packed dimensions (W×H×D)(mm) : (1190×755×313)~(1770×755×323)

• Net/Gross weight(kg) : (24.7/29.7)~(36.4/42.9)
