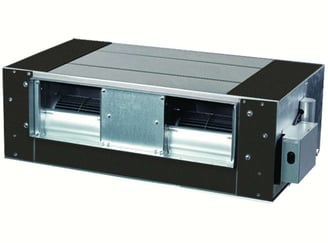

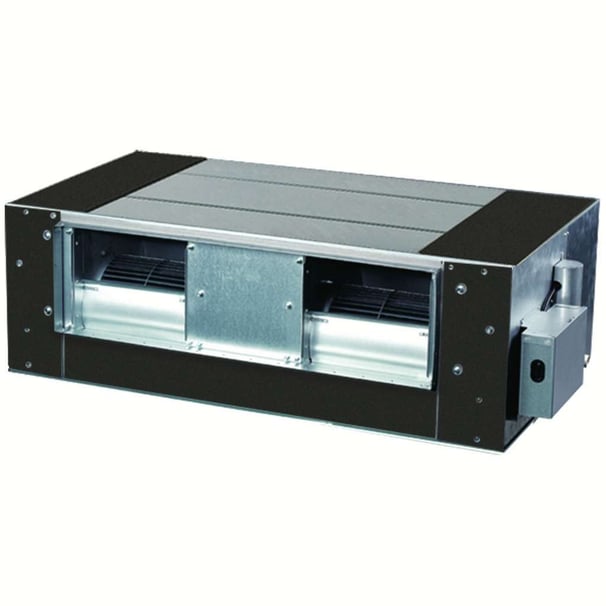

800-2200CFM AC 2-Pipe High Static Pressure Duct(50/60Hz)

High external static pressure allows extensive ductwork runs and flexible application.

MDVF-800D70E~MDVF-2200D100E

Air volume H/M/L (cubic meter/h) : (1360/1220/1090)~(3740/3360/2990)
External Static pressure(Pa) : 70.0~100.0
Rated cooling capacity H/M/L (KW) : (6.6/6.37/6.12)~(30/26.7/22.5)
Rated heating capacity H/M/L (KW) : (9.7/8.54/7.18)~(23.8/20.94/17.85)
Cooling Water flow rate(L/h) : 1135.0~3423.0
Cooling Water pressure drop(kPa) : 8.0~100.0
Heating Water pressure drop(kPa) : 8.4~130.0
Body dimension(WxHxD)（mm）: (946×400×816)~(1290×400×809)
Net weight（KG) : 50.0~76.0
Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
