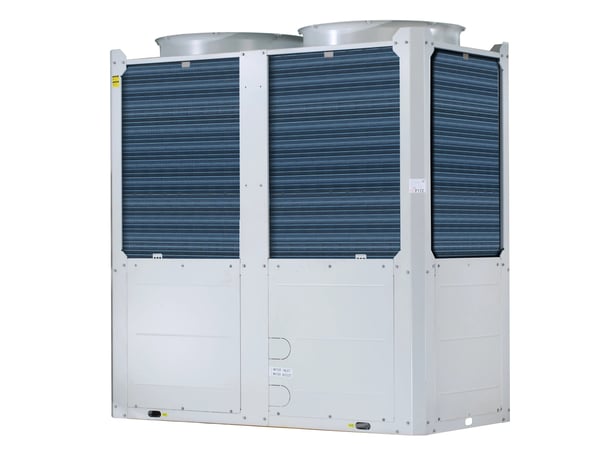

60~260kW King Plus Inverter Air-Cooled Chiller

The Aqua Tempo Super II Series is Midea's latest DC inverter air-cooled chiller. Its compact design and excellent performance make it suitable for a wide range of applications. They can operate in cooling mode with ambient temperatures of up to 52°C and with outlet water temperature as low as 0°C. The water flow switch and wired controller are both built-in, making installation more convenient. A hydraulic module with water pump and expansion tank can be added as a customization option to meet special installation situation requirements.

MDVM-60BR1-PT / MDVM-130BR1-KS / MDVM-180BR1-PT / MDVM-200BR1-P / MDVM-260BR1-KS

Power Supply (V/Ph/Hz) : 380-415/3/50
Cooling Capacity (kW) : 27.0~85.0
Heating Capacity (kW) : 31.0~92.0
Net dimensions (W×H×D)(mm) : (1870×1175×1000)~(1870×1175×1000)
Packed dimensions (W×H×D)(mm) : (1910×1225×1035)~(3275×1130×1540)
Net weight(kg) : 300.0~710.0
Gross weight(kg) : 310.0~739.0
Ambient temp. operation range(Cooling)(℃) : -10~43
Ambient temp. operation range(Heating)(℃) : (-15~30)~(-20~30)
Water outlet temp. range(Cooling)(℃) : 5~20
Water outlet temp. range(Heating)(℃) : 25~55
Refrigerant Type : R410A/R32
