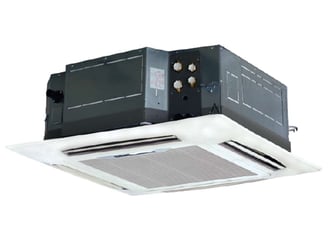

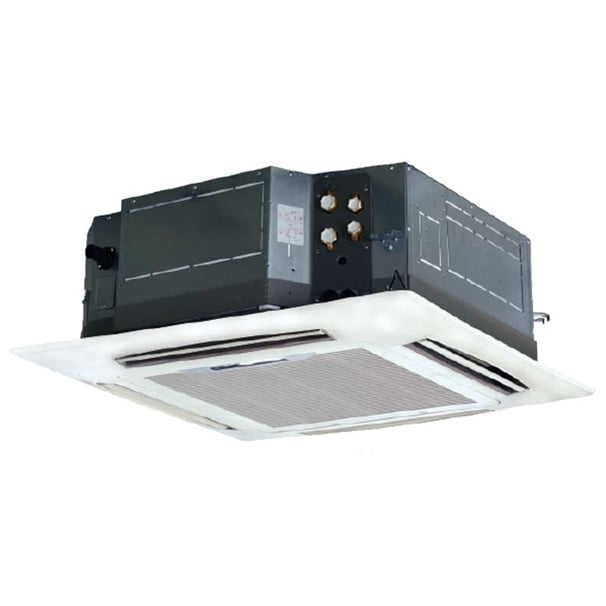

MDVF-600C4FE~MDVF-1500C4FE

• Air volume H/M/L (cubic meter/h) : (1150/800/690)~(2100/1470/1260)

• Rated cooling capacity (KW) : 5.1~10.58

• Rated heating capacity (KW) : 6.67~12.62

• Cooling Water flow rate(L/min) : 16.4~30.3

• Heating Water flow rate(L/min) : 9.6~18.1

• Cooling Water pressure drop(kPa) : 15.0~38.0

• Heating Water pressure drop(kPa) : 37.0~61.0

• Panel dimension(WxHxD)（mm）: 950×45×950

• Body dimension(WxHxD)（mm）: 840×300×840

• Net weight（KG) : 41.0~44.0

• Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
