35~130kW King（50/60Hz）

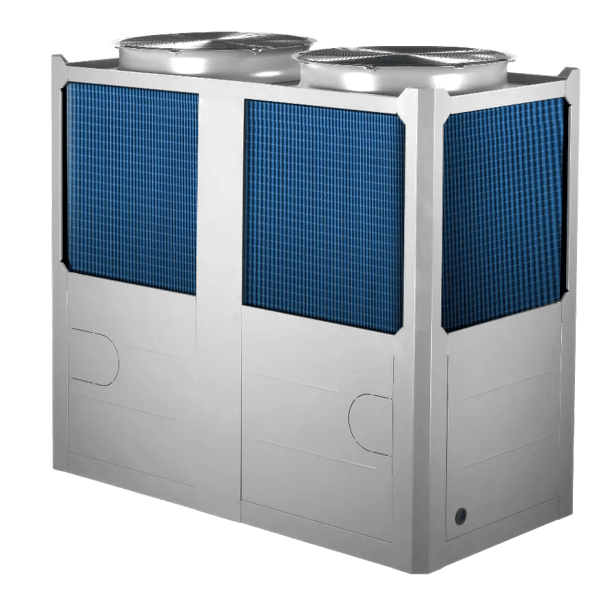

Midea DC Inverter Air-cooled Mini Chiller has unitary structure design and hydraulic module is built in the outdoor unit. It is air-cooled water heat pump chiller so there is no need of cooling water tower at the condensing side. DC inverter Mini chillers’ cooling capacity range is from 5kW to 16kW and it can freely combine with fan coil units and floor heating. These units are designed for residential applications or light commercial applications that require cold or hot water. Maximum 16 units combination /Fixed-speed compressor / Tube-in-tube & shell-tube exchanger / LA* Ambient temperature

MDVM-35BR1-S; MDVM-65BR1-K; MDVM-65BR1-S; MDVM-80BR1-S; MDVM-130BR1-K

Power Supply (Ph-V-Hz) : (220-240/1/50)~(380-415/3/50)~(208-230/1/60)
Cooling Capacity (kW) : 5.0(1.9~5.8)~14.0(3.8~18.1)
Heating Capacity (kW) : 6.2(2.1~7.0)~16.2(4.0~19.0)
Net dimensions (W×H×D)(mm) : (990×966×354)~(970×1327×400)
Packed dimensions (W×H×D)(mm) : (970×1327×400)~(1082×1456×435)
Net weight(kg) : 81.0~112.0
Gross weight(kg) : 91.0~123.0
Ambient temp.operation range(Cooling)(℃) : -5~46
Ambient temp.operation range(Heating)(℃) : -15~27
Water outlet temp. range(Cooling)(℃) : 4~20
Water outlet temp. range(Heating)(℃) : 30~55
