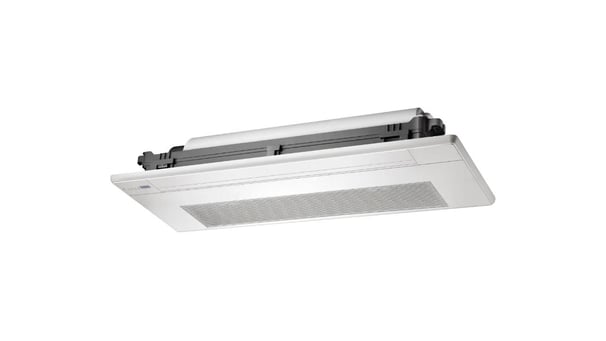

300-600CFM AC & DC 2-Pipe 1-Way Cassette (50/60Hz)

Compact dimensions, can easily be mounted in a narrow ceiling void.

MDVF-300C1E; MDVF-400C1E;MDVF-300C1VE~MDVF-500C1VE

Air volume H/M/L (cubic meter/h) : (510/450/400)~(1000/880/800)
Rated cooling capacity H/M/L (KW) : (3.04/2.79/2.56)~(5.709/4.85/4.36)
Rated heating capacity H/M/L (KW) : (5.13/4.69/4.04)~(9.6/8.36/7.48)
Water flow rate(L/s) : 520.0~982.0
Cooling Water pressure drop(kPa) : 14.0~20.2
Heating Water pressure drop(kPa) : 9.0~18.1
Panel dimension(WxHxD)（mm）: 1180x25x465)~(1420×10×755)
Body dimension(WxHxD)（mm）: (1054x155x428)~(1200×198×655)
Net weight（KG) : 16.3~41.6
Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
