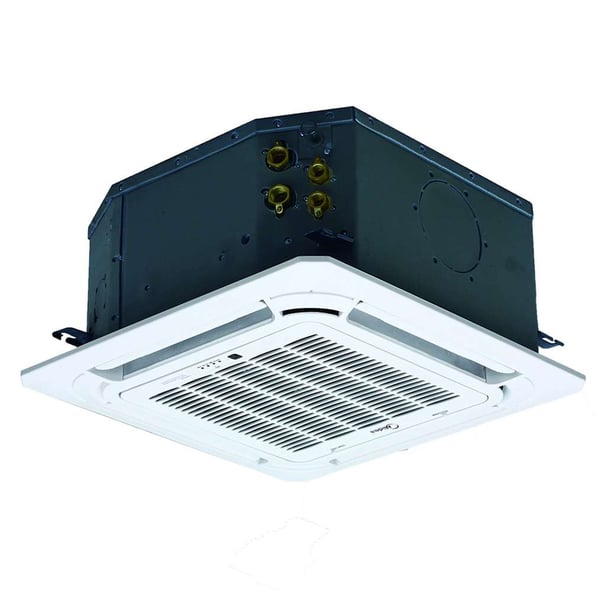

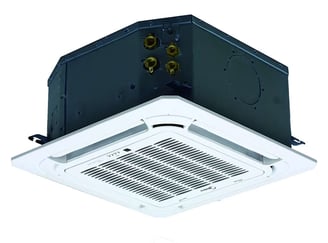

MDVF-300C4CFE~MDVF-500C4CFE

• Air volume H/M/L (cubic meter/h) : (510/440/360)~(850/730/600)

• Rated cooling capacity (KW) : 2.5~3.5

• Rated heating capacity (KW) : 3.7~5.1

• Cooling Water flow rate(L/min) : 7.2~10.0

• Heating Water flow rate(L/min) : 5.3~7.3

• Cooling Water pressure drop(kPa) : 22.0~24.0

• Heating Water pressure drop(kPa) : 17.0~27.0

• Panel dimension(WxHxD)（mm）: 647×50×647

• Body dimension(WxHxD)（mm）: 575×261×575

• Net weight（KG) : 16.5

• Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
