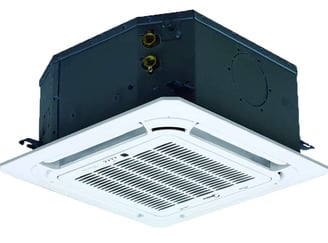

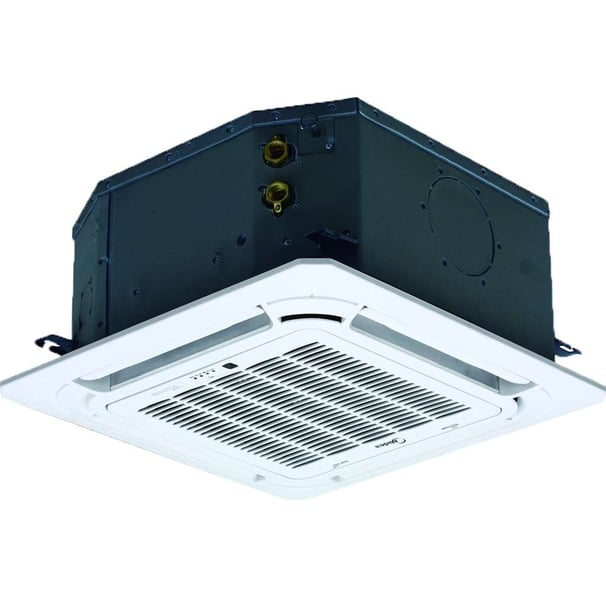

MDVF-300C4CE~MDVF-500C4CE

• Air volume H/M/L (cubic meter/h) : (510/440/360)~(850/730/600)

• Rated cooling capacity H/M/L (KW) : (3/2.58/2.16)~(4.5/3.6/3.06）

• Rated heating capacity H/M/L (KW) : (4/3.5/3.08)~(6/4.76/4.07)

• Water flow rate(L/min) : 8.7~12.9

• Cooling Water pressure drop(kPa) : 14.0~16.0

• Panel dimension(WxHxD)（mm）: 647×50×647

• Body dimension(WxHxD)（mm）: 575×261×575

• Net weight（KG) : 16.5

• Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
