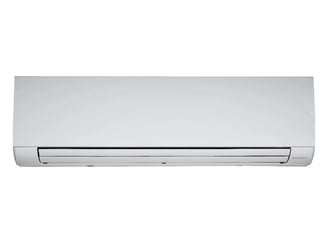

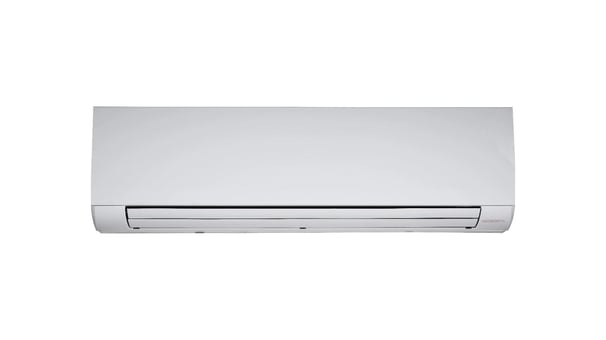

MDVF-250WMAE~MDVF-600WMAE; MDVF-250WMPE~MDVF-600WMPE

• Air volume H/M/L (cubic meter/h) : (425/390/350)~(1020/915/780)

• Rated cooling capacity H/M/L (KW) : (2.63/2.41/2.16)~(5/4.47/3.97)

• Rated heating capacity H/M/L (KW) : (3.36/3.1/2.79)~(6.7/6/5.28)

• Cooling Water flow rate(L/h) : 452.0~860.0

• Cooling Water pressure drop(kPa) : 29.4~42.5

• Heating Water pressure drop(kPa) : 27.3~39.7

• Body dimension(WxHxD)（mm）: (915×210×290)~(1072×315×230)

• Net weight（KG) : 13.0~19.0

• Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
