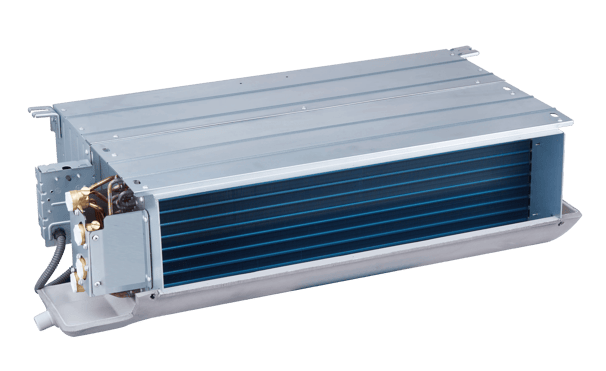

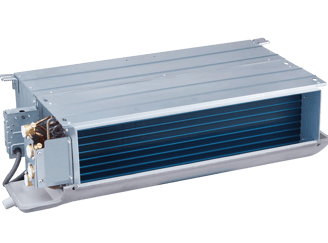

MDVFN-200D304FE~MDVFN-1400D304FE

• Air volume H/M/L (cubic meter/h) : (340/255/170)~(2380/1785/1190)

• External Static pressure(Pa) : 12.0

• Rated cooling capacity H/M/L (KW) : (2/1.76/1.52)~(11.5/9.9/8.86)

• Rated heating capacity H/M/L (KW) : (3/2.64/2.22)~(15.5/13.48/11.78)

• Cooling Water flow rate(L/h) : 344.0~1978.0

• Heating Water flow rate(L/h) : 258.0~1333.0

• Cooling Water pressure drop(kPa) : 7.6~51.9

• Heating Water pressure drop(kPa) : 6.8~55.2

• Body dimension(WxHxD)（mm）: (741×241×522)~(2022×241×522)

• Net weight（KG) : 15.1~43.6

• Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
