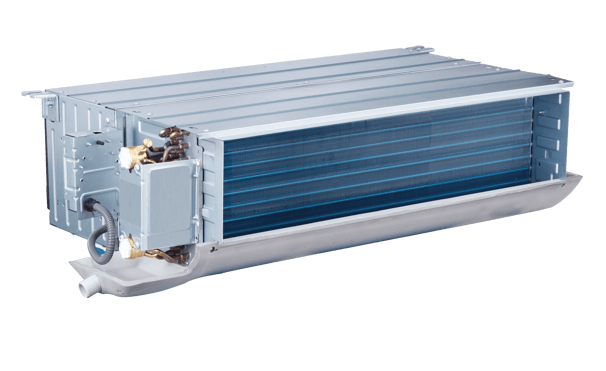

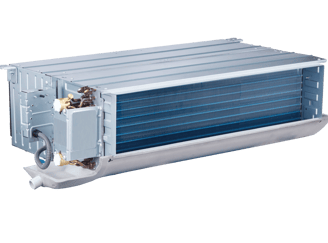

200-1400CFM 2-Pipe 4-Row Duct(50/60Hz)

Compact dimensions, can easily be mounted in a ceiling void.

MDVFN-200D304E~MDVFN-1400D304E

Air volume H/M/L (cubic meter/h) : (340/255/170)~(3400/2550/1700)
External Static pressure(Pa) : 12.0~30.0
Rated cooling capacity H/M/L (KW) : (2/1.74/1.52)~(18/15.3/13.5)
Rated heating capacity H/M/L (KW) : (3.2/2.75/2.37)~(23.4/19.8/17.5)
Cooling Water flow rate(L/h) : 344.0~3096.0
Cooling Water pressure drop(kPa) : 5.0~26.2
Heating Water pressure drop(kPa) : 4.2~24.3
Body dimension(WxHxD)（mm）: (741×241×522)~(1500×342×612)
Net weight（KG) : 13.9~57.0
Power Supply (V-Ph-Hz) : 220V-240V-1Ph-50(60)Hz
